Click camera for actual comparison images.




Click camera for actual comparison images.
DCR-7900ZD High Definition
Wideangle Conversion Lens 0.79x
The DCR-7900ZD 0.79x wide-angle lens is a high definition conversion lens made to broaden the field of view when attached on the digital camera's lens, and it's fabricated with two of the high index optical glass, resulting in a high resolution power of 230 lines/mm at center (MTF30%) at center. It achieved the level of almost non-distortion, 0.9% rate. It creates an unusually fine and non distorted wide angle image.
The Model IE6257 Raynox tube adapter ring and Canon LA-DC58C Conversion lens adapter(sold separately) are required for use with the DCR-7900ZD on the PowerShot Pro1 camera

IE6257 adapter ring is Not Included.

Specifications
DCR-5320PRO 3-in-1High Definition
Triple Macro Conversion Lens

The DCR-5320PRO Macro Close-up lens is made of two independent lenses of 2-diopter magnification and 3-diopter one, both fabricated in doublet formula for less color aberration at corners.@By putting the two lenses together, it creates the high 5-diopter magnification macro close-up conversion lens with the excellent high resolution power of 200 lines/mm at center (MTF30%).

The Model RA7258 Raynox adapter ring and Canon LA-DC58C Conversion lens adapter(sold separately) are required for use with the DCR-5320PRO on the PowerShot Pro1 camera

RA7258 adapter ring is Not Included.
Specifications




HOW TO MOUNT THE DCR-7900ZD

1) Set the camera power "OFF" and remove the lens cap from the camera.
2) Remove the camera ring from the camera.
3) Mount the rear part to the Canon LA-DC58C.
4) Screw in IE6257 adapter onto the LA-DC58C(Rear part).
5) Set the camera power "ON" and confirm the master lens is set for maximum wideangle position.
6) Mount the DCR-7900ZD onto the IE6257 adapter.


Click camera for actual comparison images.


Click camera for actual comparison images.

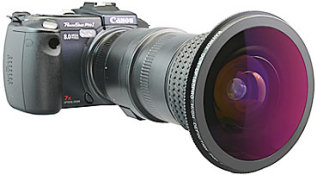

DCR-CF187PRO High Definition 185º Circular Fish-Eye Conversion Lens
Upon mounting on the zoom lens, The DCR-CF187PRO opens the field of view to the circular fisheye image. It's a completely new high definition lens made of the high index optical coated lens with a 4-group/6-element formula to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion.
The Model IE6257 Raynox tube adapter ring and Canon LA-DC58C Conversion lens adapter(sold separately) are required for use with the DCR-CF187PRO on the PowerShot Pro1 camera
Magnification: Nominal 185-degree, Actual 185-degree/Diagonal, 185-degree/Horizontal
Lens construction: 4G/6E, made of optical glass lenses, all surfaces fully coated.
Mounting threads: 62mm
Size / Weight: 96 x 98 / 560g(20oz)


RA6258, RA6255, RA6252 and RA6243 adapter rings are Included.
Specifications
DCR-2025PRO 2.2x High Definition telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of Canon PowerShot Pro1 zoom lens to 440mm super telephoto ! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.

260 lines/mm resolution power at center (MTF30%)

The Model RA6258 Raynox adapter ring and Canon LA-DC58C Conversion lens adapter(sold separately)are required for use with the DCR-2025PRO on the PowerShot Pro1 camera.
Vignetting(Darkening corners) may appear as shown on the actual image.
Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Minimum focusing distance: 5m
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 62mm
Front filter size: 82mm
Size/Weight: 123 x 85mm/275g.(9.7oz)

DCR-2025PRO comes with 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes and a LS-082 lens shade.
Specifications


HOW TO MOUNT THE DCR-CF187PRO
1) Set the camera power "OFF"@and remove the lens cap from the camera.
2) Remove the camera ring from the camera.
3) Mount the rear part to the Canon LA-DC58C.
4) Screw in IE6257 adapter onto the LA-DC58C(Rear part).
5) Set the camera power "ON" and confirm the master lens is set for maximum wideangle position.
6) Mount the DCR-CF187PRO onto the IE6257 adapter.


Click camera for actual comparison images.


Click camera for actual comparison images.

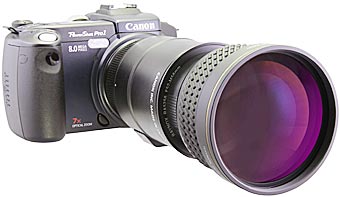

DCR-1542PRO 1.54x
High Definition telephoto Conversion Lens

DCR-1542PRO lens extends the focal length of PowerShot Pro1 camera zoom lens to 300mm telephoto lens! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.
340 lines/mm resolution power at center (MTF30%)
The Model RA5258A Raynox adapter ring and Canon LA-DC58C Conversion lens adapter(sold separately) are required for use with the DCR-1542PRO on the PowerShot Pro1 camera
Vignetting(Darkening corners) may appear as shown on the actual image.

Magnification: Nominal 1.54x
Actual 1.54x / Diagonal, 1.54x / Horizontal
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 67mm
Size/Weight: 71 x 67mm/240g
RA5258A adapter ring is Not Included.
Specifications

DCR-FE181PRO Fish-Eye(Full Frame) Lens
DCR-FE181PRO lens captures an amazing ultra-wideangle view of 180 degrees on both diagonal and horizontal line at the maximum wideangle position. Zooming may be limited to 1.5x zooming when attached to the PowerShot Pro1 digital camera. It's a completely new high definition lens made of the high index optical lens with a 4-group/5-element formula.
480 lines/mm resolution power at center (MTF30%)

The Model IE6257 Raynox tube adapter ring and Canon LA-DC58C Conversion lens adapter(sold separately) are required for use with the DCR-FE181PRO on the PowerShot Pro1 camera(See below animation for mounting the lens onto the camera.)
Magnification: Nominal 0.24x
Actual 180-degree/Diagonal, 180-degree/Horizontal
Lens construction: 4G/5E Optical coated glass elements
Mounting threads: 62mm
Front filter size: None
Size/Weight: 100 x 69mm/685g(24oz)
RA6258, RA6255, RA6252 and RA6243 adapter rings are Included.

Specifications

HOW TO MOUNT THE DCR-FE180PRO

1) Set the camera power "OFF"@and remove the lens cap from the camera.
2) Remove the camera ring from the camera.
3) Mount the rear part to the Canon LA-DC58C.
4) Screw in IE6257 adapter onto the LA-DC58C(Rear part).
5) Set the camera power "ON" and confirm the master lens is set for maximum wideangle position.
6) Mount the DCR-FE180PRO onto the IE6257 adapter.


Click camera for actual comparison images.


Click camera for actual comparison images.

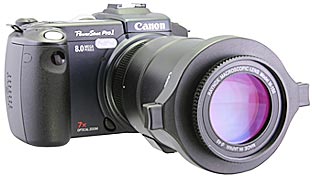

DCR-150 Macro/Close-Up lens
You can simply "Snap On" DCR-150 Macro lens onto the LA-DC58C Conversion lens adapter.(Shooting distance from the object ; 195mm in maximum telephoto mode.)

Magnification: 1x compare to camera's maximum macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-150 53x18mm/50g.
CAMERA STAND KS-2000 FOR MACRO IMAGING


Specifications

Slight Vignetting(Darkening one or more corners) may appear as shown on the actual image.
DCR-250 Super Macro/Close-Up lens
You can simply "Snap On" DCR-250 Super Macro lens onto the LA-DC58C Conversion lens adapter.(Shooting distance from the object ;118mm in maximum telephoto mode.)

Magnification: 2x compare to camera's maximum macro image size.
Lens construction: 2G/3E Optical coated glass elements
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-250 53x18mm/60g.
CAMERA STAND KS-2000 FOR MACRO IMAGING


Specifications

Slight Vignetting(Darkening one or more corners) may appear as shown on the actual image.


Click camera for actual comparison images.
MSN-200 Super Macro/Close-Up lens
You can simply "Snap On" MSN-200 Super Macro lens onto the lens filter threads.(52-67mm) by using a universal mount UAC3500 and it will be able to take macro images with minimum distortion at the maximum telephoto position of PowerShot Pro1 camera.
(Shooting distance from the object ;34mm in maximum telephoto mode.)
Magnification: 5.7x compare to original macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-200 42x22mm/60g.
CAMERA STAND KS-2000 FOR MACRO IMAGING


UAC3500 Universal adapter is Included in MSN-202.
UAC3500 Universal adapter is NOT included in MSN-200.

( You can also mount the lens by using two adapter rings RA5258A and RA3752 which are sold separately from us.)
Slight Vignetting(Darkening one or more corners) may appear as shown on the actual image.
IE6257 Tube adapter ring
This is an adapter ring required for mounting DCR-CF185PRO/DCR-FE180PRO onto the rear part of Canon LA-DC58C Conversion Lens Adapter.

HOW TO MOUNT THE DCR-FE180PRO

1) Set the camera power "OFF"@and remove the lens cap from the camera.
2) Remove the camera ring from the camera.
3) Mount the rear part to the Canon LA-DC58C.
4) Screw in IE6257 adapter onto the LA-DC58C(Rear part).
5) Set the camera power "ON" and confirm the master lens is set for maximum wideangle position.
6) Mount the DCR-FE180PRO onto the IE6257 adapter.


UAC3500 Universal Adapter for 52-67mm filter size.
You can simply "Snap On" UAC-3500 Universal Adapter on the lens filter threads of 52-67mm.
Male threads size: 52-67mm
Female threads size: 37mm
CAMERA STAND KS-2000 FOR MACRO IMAGING
A camera stand with built-in light source and height adjustable camera mount.

WMV VIDEO FILE(WMV 480KB)
(480KB)
MOV VIDEO FILE(MOV 3400KB)
(3400KB)
WMV VIDEO FILE(WMV 600KB)
(600KB)
MOV VIDEO FILE(MOV 3600KB)
(3600KB)
The DCR-CF185PRO/DCR-FE180PRO lenses weigh 560g (1.24lbs)/685g (1.5 lbs)and they are rather heavy stuff and may limit the way of shooting condition.Be careful in handling the camera with the lens attached, such as supporting or protecting the lens by your own hand.
Zooming may be limited to f=10mm(1.5x zoom) while the DCR-FE180PRO is attached with IE6257 Tube adapter ring. Do not zoom further than 10mm while the lens is attached.
Raynox telephoto conversion lenses were designed to use at maximum Telephoto position of  camera's zoom lens.
All of Raynox conversion lenses are proudly made in Japan. At our wholly owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
The production of MSN-200 & MSN-500 have been discontinued in Nov. 2005 and they were replaced by MSN-202 & MSN-505.
Canon LA-DC58C conversion lens adapter is a product of Canon Inc.
Do Not use the built-in flash while conversion lens is attached.
*The cosmetic designs may change without prior Notice.
Use of adapters other than Raynox made may result poor resolution at the corners of the image.
