DCR-250 MacroScan Conversion Lens

  Explores the world of MACROPHOTOGRAPHY with your Digital Camera and Camcorder


Telephoto

wideangle

fisheye

macro

index

hivisonyoko


The lens includes a snap-on universal mount suitable for 52mm to 67mm filter size.
DCR-250 Super Macro lens obtains the maximum macro magnification power when set at the most telephoto position of zoom lens. The lens is made of high index optical glass elements which produce rich and razor sharp image.



Full-frame D-SLR Compatible
yokored

49mm Front filter size

yokored

2G/3E Hi-Index Optical Glass

yokored

Snap-on Universal Adapter

yokored

An actual image taken with DCR Macro lens.

Compatible with HD-Camcorder
yokored
DCR-250 is also suitable to High Definition Camcorders.
Macro Comparison shots taken with 3-CCD Camcorder.
A LIST OF ADAPTERS for your Camcorder filter thread sizesCM-2000
WMV VIDEO FILE(WMV 480KB)
(480KB)
MOV VIDEO FILE(MOV 3400KB)
(3400KB)
WMV VIDEO FILE(WMV 600KB)
(600KB)
MOV VIDEO FILE(MOV 3600KB)
(3600KB)


Click the lens to comparison images



dcr150


  Specifications & Measurements
  Magnification 8-Diopter
  Lens construction 2-group/3-element, Coated optical glass elements
  Front Filter thread 49mm
  Mounting thread 43mm
  Dimensions 18mm x 53mm
  Weight 60g(2.1oz)
  Accessories UAC2000 Universal adapter, Lens case, Lens caps, Instruction manuals


Compatible with Compact System Cameras
(Mirror-less System Cameras)
yokored

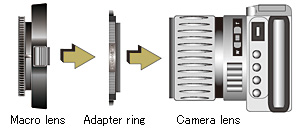

There are five(5) adapter rings available for use with the lenses of Compact System Cameras (Mirror-less System Cameras) in the market. The filter sizes we make are of ;
37mmP0.75-Mod.RA5237B, 40.5mmP0.5-Mod.RA52405P5,
43mmP0.75-Mod.RA5243B, 46mmP0.75-Mod.RA5246B and
49mmP0.75-Mod.RA5249B. (Sold separately)



Cross reference table

Digital cameras cross reference table_デジカメ適合表



The specifications and cosmetic designs may change without a notice.
Macro Conversion lens is a precision optical instrument assembled with the critical alignment, and do not subject it to severe shock and in environment of excessive cold or heat or humidity. Do not look at the sun or a strong light beam direct through the Macro Conversion lens. It may cause a severe damage on human eyes. Important; Do not shoot your camera with the Macro Conversion lens on, in direct sun light on the lens surface.
Macro Conversion lens may cause vignetting image( darkening one or more corner of the taken image )when used with wideangle lens.
Screw-thread pitch size is 0.75mm unless specified.
Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
Please detach the Macro Conversion lens and put the front and rear lens caps on after completing the shooting, before carrying the camera around.
All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
The lens is neither made for dust-free nor moisture/water-proof.
