* 4 models are compatible with SONY HVR-Z7, HVR-Z7E, HVR-S270, HVR-S270E with 12x Zoom HDV Camcorders

Click camera for actual comparison images.

HDP-9000EX High Definition Telephoto conversion Lens 1.8x
Especially developed for using with a large aperture taking lens of High Definition camera, extending the focal length 1.8 times. Brings a distant subject up very close in maintaining the original superb image quality.
HDP-9000EX lens is originally designed in high resolution formula getting an amazing 280 L/mm resolution power at center. It perfectly suits to a high definition camera.
The lens comes with an originally made Lens Shade which shuts a flare and ghost image effect considerably and the lens case. These are packed with the lens in the carton together.
HDP-9000EX extends the focal length of HVR-Z7/S270 camera 12x zoom lens to 853mm telephoto*, 691mm telephoto**.
With the HDP-9000EX lens attached, there will be no influence on F number of the master lens.
This model is 72mm direct mounting size.

Construction: Sturdy and solid metal body
(excluding the Lens Shade)
Magnification: Nominal 1.8x
Actual 1.8x/Diagonal, 1.8x/Horizontal
Lens construction: 2G/4EOptical coated glass elements
Minimum focusing distance: 2.5m(12x zoom lens)
Effective zooming without vignetting: 8x - 12x(Under-Scanning mode),
Front filter size: 108mm
Mounting threads: 72mm
Size/Weight: 210 x 120mm/825g(29oz)
(including the Lens Shade)

Accessories included: Lens Shade, Lens caps, Lens case.


The lens shade will cut an unwanted light beam,
and it reduces flare and ghost image effect considerably.
* 35mm film equivalent(4:3), **35mm film equivalent(16:9). PAGE TOP

Click camera for actual comparison images.

Selfmade Paper Lens Shade-by-Print

HDP-6000EX High Definition
Wideangle conversion Lens 0.79x
Production discontinued - Feb. 2013
New HDP-6000EX 0.79x high definition lens is especially designed for Professional High Definition Camcorders. It maintains clear focusing while zooming whole zoom range.
The lens creates super wide angle view of f=25.3mm (35mm film equiv.16:9 mode), compatible up to 12x zooming position when mounted on the HVR-Z7/S270 12x zoom. HDP-6000EX lens controls the image distortion percentage at the least, less than -2.4%. The lens has an amazing resolution power of 640 lines/mm at center (MTF 30%) to suit the high definition image quality of the camera.
This model is 72mm direct mounting size.

Construction: Sturdy and solid metal body
Magnification: Nominal 0.79x
Actual 0.788x/Diagonal, 0.788x/Horizontal
Lens construction: 3G/4E, all surfaces fully coated
Minimum focusing distance: 1cm
Effective zooming with conversion lens on: 1x - 12x
Front filter size: 117mm
Mounting threads: 72mm
Size/Weight: 56 x 120mm/485g(17.1oz)

Accessories included: Lens caps, Lens case.


Click camera for actual comparison images.

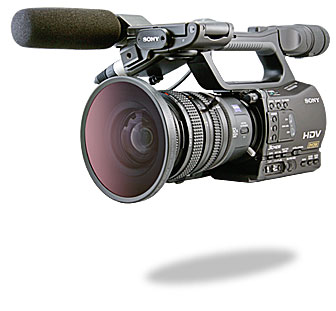

HDP-5072EX High Definition
Semi-Fisheye conversion Lens 0.5x
The model HDP-5072EX is a 0.5x semi-fish eye conversion lens particularly designed for use with the High Definition large aperture camera lens, and it has a resolution power of 630 lines/mm at center (MTF30%). With the HDP-5072EX lens mounted on a High Definition camera's lens, it broadens 100% more the field of view than the original widest angle of view. In shooting a subject of short distance with HDP-5072EX lens on, it creates an interesting image of semi-fisheye effect, taking an advantage of the -31% distortion nature, but it takes a panoramic picture of 0.5x wide angle coverage without bothering the distortion image, when taken a distant subject.

Construction: Sturdy and solid metal body
Magnification: Nominal 0.5x
Actual 0.44x/Diagonal, 0.5x/Horizontal
Lens construction: 3G/3E Optical coated glass elements
Minimum focusing distance: 1cm
Effective zooming with conversion lens on: 1x - 5x zoom
Front filter size: None
Mounting threads: 72mm
Size/Weight: 42 x 125mm/640g(22.6oz)

Accessories included: Lens caps, Lens case.

DCR-5320PRO 3-in-1
High Definition Macro Conversion Lens

The DCR-5320PRO High Definition Macro Conversion lens is particularly designed to use with the high-end digital, film and High Definition cameras, resulting in an amazing resolution power of 200 lines/mm at center (MTF30%) with a low dispersion. With the Macro lens attached on the camera's lens, it makes possible to approach the object very close for macro shooting. The model consists of two independent lenses, one is with 2-diopter magnification and the other with 3-diopter. It also makes a 5-diopter lens by coupling the both lenses together. Taking advantage of using in three ways, you can shoot the object at the distances of either 50cm or 30cm or 17cm, depending upon the nature of a subject. All lens glass elements are fully coated for the optimum light transmittance and fine image quality.
The adapter rings which fit to the 52mm, 55mm, 58mm, 62mm, 67mm, 77mm, 82mm threads (except 72mm) are sold separately.
This model is 72mm direct mounting size.
LENS 2-Diopter 3-Diopter 5-Diopter
Construction 1G/2E 2G/3E 3G/5E
Weight 105g 290g 395g
Length 24mm 39mm 59mm
Filter size 72mm 72mm 72mm
Mount size 72mm 72mm 72mm
Focusing Distance 486mm* 311mm* 170mm*
Zooming capability 2x-12x (16:9) 2x-12x (16:9) 3x-12x (16:9)
* Camera focus set in infinity .
* In under scanning mode.
* All surfaces fully coated
* Distances shown here are between top of lens to the object.

How ?
Add one more DCR-5320PRO onto the same set, giving you
8 different diopter choice of 2, 3, 4, 5, 6, 7, 8 and 10.

PFR-072MC Lens Protector Filter

The original Lens Shade can be attached on the camera lens with the PFR-072MC filter on, and also the lens cap stored inside Shade is remained operative.

The PFR-072MC filter is made for attaching permanently with SONY HVR-Z7/S270 12x zoom lens, protecting the expensive zoom lenses from dust, dirt and accidental damage.
The filter is made of high grade optical glass multi-layer coated for a maximum high fidelity to the original characteristic of the camera lens. A filter cap is included in the set.

The cosmetic designs may change without prior notice.
Remote control function may not work properly with conversion lens attached.
When the lighting is not bright enough, there may be possibility of creating a flare effect which reduces the image quality at the telephoto position of the 12x zoom lens while HDP-6000EX is attached. When the HDP-6000EX lens is attached and set at telephoto for a distant object, please make sure that the object is under the bright condition.
Raynox telephoto conversion lenses were designed to use at maximum Telephoto position of  camera's zoom lens.
Raynox wideangle conversion lenses were designed to use at maximum wideangle position of  camera's zoom lens unless specified.
Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
The lens is neither made for dust-free nor moisture/water-proof.
All of Raynox conversion lenses are proudly made in Japan. At our wholly owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
