Raynox lens shade: model LS-082
Weight: 69g.(2.4oz)

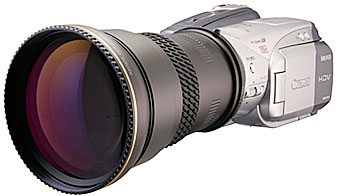

DCR-2025PRO 2.2x
High Quality Telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of Canon HV30/HV20/HG10 zoom lens to 1160mm*
Super telephoto !*
It's a completely new high definition lens made of the high index optical
lens with a 2-group/4-element formula. 260 lines/mm resolution power at center (MTF30%) Model RA6243 Raynox adapter ring for 43mm filter size
is required for use with the DCR-2025PRO + Canon HV30/HV20/HG10 camera.
*35mm film equivalent in 4:3 ratio.
DCR-2025PRO comes with 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes and a LS-082 lens shade.
Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Lens construction: 2G/4E Optical coated glass elements
Front filter size: 82mm, Mounting threads: 62mm
Dimension/Weight: 85mm x 123mm/275g(9.7oz)
Effective zooming without vignetting: 5x - 10x
Minimum focusing distance: 5m
DCR-1540PRO 1.54x
HD Telephoto Conversion Lens
DCR-1540PRO lens extends the focal length of Canon HV30/HV20/HG10 zoom lens to 810mm
telephoto lens!*
It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula. This new concept in designing the lens made it possible to achieve an amazing high definition telephoto lens of the 340 lines/mm resolution power at center (MTF30%), low dispersion and the increased light transmittance at fringe area. Model RA5243B Raynox adapter ring(sold separately) for 43mm filter size
is required for use with the DCR-1540PRO + Canon HV30/HV20/HG10 camera.
RA5243B adapter ring is Not Included.
*35mm film equivalent in 4:3 ratio.
Magnification: Nominal 1.54x Actual 1.54x / Diagonal, 1.54x / Horizontal
Lens construction: 2G/4E Optical coated glass elements
Front filter size: 67mm, Mounting threads: 52mm
Dimension/Weight: 67mm x 71mm/240g(8.5oz)
Effective zooming without vignetting: 3x - 10x(16:9 ratio)
Minimum focusing distance: 3m
Raynox lens shade: model LS-055(Sold separately)
Weight: 37g.(1.3oz)
The lens shade will cuts an unwanted light beam, and it reduces flare and ghost image effect considerably.
HD-2200PRO High Definition
2.2x Telephoto Conversion Lens
The model HD-2200PRO High-Definition Super Telephoto Conversion lens is
made of the hi-index coated optical glass elements with new concept of
lens designing using two-group/four-element lens formula. This new concept
of lens designing made it possible to achieve an amazing high definition
Telephoto lens of the 200 lines/mm resolution power at center (MTF30%).
Magnification: Nominal 2.2x
Actual 2.17x/Diagonal, 2.17x/Horizontal
Lens construction: 2G/4E Optical coated glass elements
Front filter size: 55mm
Mounting threads: 37mm
Size/Weight: 76 x 59mm/105g(3.7oz)
Minimum focusing distance: 5m
Effective zooming: 10x zoom
16:9 mode max. telephoto: Slight vignetting in under scanning mode and still image mode.
4:3 mode max. telephoto: Slight vignetting in under scanning mode and still image mode.
Accessories included: Lens caps, Lens pouch, Instructions, 5-adapter
rings: 27mm / 30mm / 30.5mm / 34mm / 43mm filter size. Specifications
Comparison movie taken with the HD-2200PRO on or without at the same distance.
(16:9 Wide ratio taken with SONY HDR-HC1 HDV camera）
Comparison movie taken with the HD-2200PRO on or without at the same distance.
(16:9 Wide ratio with 20x Digital zoom taken with SONY HDR-HC1 HDV camera）
Comparison movie taken with the HDP-7700ES on
or without at the same distance
(16:9 Wide mode - Taken with SONY HDR-HC7 HDVcam）
HDP-7700ES High Definition
Super-Telephoto conversion Lens 3.0x
Finally, we are able to introduce an ultimate telephoto lens of 3.0 times high powered yet constructed in compact measurements of 92mm length (without Lens Shade) x 58mm outside diameter (at the largest). Thanks to the State-of-the-art lens designing formula developed here in Tokyo Lab, the new 3-group/5-element construction of high index optical glasses reached up to a high image standard of 220 lines/mm resolution power at center (MTF30%) with three times high powered telephoto magnification. It never reached before.
The Lens Shade and 5-adapter rings come with the lens as a standard accessory.
With the HDP-7700ES lens attached, there will be no influence on F number
of the master lens.
Magnification: Nominal 3.0x Actual 3.0x / Diagonal,
3.0x / Horizontal
Lens construction: 3G/5E Optical coated glass elements
Mounting threads: 37mm
Front filter size: 55mm
Size/Weight: 92 x 58 mm/218g(7.68oz)
Minimum focusing distance: 10m
Effective zooming : 10x (max.Telephoto)
*16:9 mode max. telephoto: Vignetting in under scanning mode and still image mode
*4:3 mode max. telephoto: Vignetting in under scanning mode and still image mode
*It may reduce the size of vignetting when shooting the image at F/2.8
setting.
*If necessary use "Digital Zoom" function to remove vignetting
effect completely.
Accessories included: Lens Shade, Lens caps, Lens pouch, Instructions,
5-adapter rings: 27mm / 30mm / 30.5mm / 34mm / 43mm filter size. Specifications
HD-6600PRO-52/DCR-6600PRO High Definition Wideangle Conversion Lens 0.66x
The lens is made of hi-index optical glasses, 3-group/3-element, fully
coated for non-distortion(-1.3%) and sharp images. It's an ideal accessory
lens for professionals and advanced amateurs shooting in tight place. (Both HD-6600PRO-52 and DCR-6600PRO are the same lens.)
It is necessary to mount RA5243B adapter ring (sold separately from us)
when mounting the lens on the Canon HV30/HV20/HG10.
Magnification: Nominal 0.66x Actual 0.66x/Diagonal, 0.66x/Horizontal
Lens construction: 3G/3E, made of optical glass lenses, all surfaces fully coated.
Front filter size: 72mm
Mounting threads: 52mm
Size/Weight: 77 x 40mm/178g.(6.3oz)
Effective zooming ratio: 1x-6x zoom Accessories included: Lens caps, Lens case, Instructions.
DCR-730 Wideangle Conversion Lens 0.7x
DCR-730 lens broadens an angle of view 37% more than the original camera
lens gets. The lens is made of high index optical glass elements which
obtain the maximum resolution power of 375 lines/mm at center (MTF30%), It's compatible with whole zoom area and stays in focus. Model RA5243B Raynox adapter ring(sold separately) for 43mm filter size
is required for use with the DCR-730 + Canon HV30/HV20/HG10 camera.
RA5243B adapter ring is Not Included.
Magnification:
Nominal 0.7x Actual 0.71x Diagonal, 0.75x Horizontal
Lens construction: 2-group/2-element, all surfaces fully coated
Front Filter thread: None, Mounting thread: 52mm
Dimension/Weight: 29mm x 66mm, Weight: 130g(4.6oz)
Zooming capability: 1x - 10x(16:9 ratio),
Minimum focusing distance with DCR-730: 1cm
Accessories included: Lens caps, Lens case, Instructions. Specifications
HD-7000PRO High Definition
Wideangle Conversion Lens 0.7x
The model HD-7000PRO high definition Wideangle conversion lens is made
of the high index optical glass elements with new concept of lens designing
using three-group/three-element lens formula. This new concept in designing
the lens made it possible to achieve an amazing high definition wideangle
lens of 540 lines/mm resolution power at center (MTF30%).
It is necessary to mount RA5843 adapter ring (sold separately from us)
when mounting the lens on the Canon HV30/HV20/HG10.
Magnification: Nominal 0.7x
Actual 0.7x/Diagonal, 0.7x/Horizontal
Lens construction: 3G/3E Optical coated glass elements
Front filter size: 82mm
Mounting threads: 58mm
Size/Weight: 86 x 37mm/313g(11oz)
Effective zooming ratio: Full(1x-10x) zoom
DCR-5000 Wideangle Conversion Lens 0.5x Production discontinued - July 2008
DCR-5000 lens broadens an angle of view 100% more of the original camera
lens. It is necessary to mount RA5243B adapter ring (sold separately from us)
when mounting the lens on the Canon HV30/HV20/HG10.
Nominal 0.5x(Actual 0.5x/horizontal, 0.44x/diagonal).
(Limited zoom capability)
Lens construction: 1G/1E Optical coated glass elements
Size/Weight: 90mm x 26mm 140g.(4.9oz)
Accessories included: Lens caps, Lens pouch, Instructions. DCR-5000 is designed to focus when the zoom lens is set in 1-2x wideangle
position in auto mode.
DCR-150 Macro Conversion Lens
You can simply "Snap On" DCR-150 Macro lens onto the RA5243B
adapter ring. The shooting distance to the object is about 210mm and the
picture size would be 19mm width in Tape recoding mode.
It is necessary to mount RA5243B adapter ring (sold separately from us)
when mounting the lens on the Canon HV30/HV20/HG10.
Magnification: 4.8-Diopter
Lens construction: 2-group/3-element Optical Glass elements. all surfaces fully coated.
Front Filter size: 49mm
Mounting thread: 43mm
Measurement & Weight: Lens only - 53mm x 18mm, 50g(1.8oz)
Effective zooming without vignetting: 1x-10x zoom(16:9 ratio)
Accessories included: Lens caps, Lens case, Universal adapter UAC2000,
Instructions.
UAC2000 Universal mount included.
DCR-250 High Power Macro Conversion Lens
You can simply "Snap On" DCR-250 Macro lens onto the RA5243B
adapter ring. The shooting distance to the object is about 109mm and the
picture size would be 10mm width in Tape recoding mode.
It is necessary to mount RA5243B adapter ring (sold separately from us)
when mounting the lens on the Canon HV30/HV20/HG10.
Magnification: 8-Diopter
Lens Construction: 2-group/3-element, all optical glass elements. all surfaces fully coated.
Front Filter size: 49mm
Mounting Thread: 43mm
Measurement & Weight: Lens only - 53mm x 18mm, 60g(2.1oz)
Effective zooming without vignetting: 1x-10x zoom(16:9 ratio)
Accessories included: Lens caps, Lens case, Universal adapter UAC2000,
Instructions.
UAC2000 Universal mount included.
MSN-202 Super Macro Conversion Lens
The combination of MSN-202 and Canon HV30/HV20/HG10 makes it easy to capture a tiny
object like 3mm width for a frame-filling enlarged close-up image from
the distance of 32mm to the object at the maximum telephoto position.
MSN-505 Super Macro Conversion Lens
With MSN-505 Super Macro lens attached, the camera captures an intricate
tiny object like 2mm width for a frame-filling enlarged close-up image
from the distance of 18.5mm to the object at the maximum telephoto position.
PFR-043MC Lens Protector Filter for Canon HV30/HV20/HG10
The filter is designed to protect your valuable Canon HV30/HV20/HG10 High Definition
Camcorder lens from air pollution or scratches. The multi-layer coated
surfaces will help maintain the original optical performance of your camera.
● The cosmetic design may change without a prior notice.
● There will be no reduction of light value when these conversion lenses
are attached on the camera's lens(Except DCR-150, DCR-250, MSN-202, MSN-505
macro lenses.)
● Depending upon the condition of shooting, especially when the lighting
is not bright enough, there may be possibility of creating a flare effect
which reduces the image quality. When the conversion lens is attached,
please make sure that the object is under the bright condition.
● Raynox telephoto conversion lenses are designed to use at maximum Telephoto position of camera's zoom lens, unless specified otherwise.
● Raynox wideangle conversion lenses are designed to use at maximum wideangle
position of camera's zoom lens unless specified otherwise.
● HD-7000PRO, DCR-730 lens are made compatible in using with a HV30/HV20/HG10's 10x
zoom lens. However, when zoomed up to the end of the telephoto with the
lens on, the image quality of the picture will be lowered except the center
area, and the deterioration of resolution power at corners will occur.
You can see the actual degree of deteriorated image on the reference picture
in our RAYNOX home page. When shooting with a 10-time zoom lens at the
telephoto side, please select the bright area of enough lighting. When
you are using the wide angle lens on the zoom lens set at the telephoto
end frequently.
● With Canon HV30/HV20/HG10 HDV camcorder in use, it is recommended to mount the RA5243B
adapter ring onto HD-6600-52 or DCR-6600PRO wide angle lenses to obtain
an optimum image quality, rather than using HD-6600-43 direct on the camera
lens.
● Remote control function may not work properly with conversion lens attached.
● Internal video light/flash may not function with conversion lens or filter
attached.
● To protect the camera from an accidental damage please remove the HDP-7700ES
Lens before moving the camera and Do not carry around the camera with the
HDP-7700ES Telephoto lens attached.
● All of Raynox conversion lenses are proudly made in Japan. At our wholly
owned manufacturing subsidiary, every stage of production is rigorously
checked and tested so that the lens elements compensate effectively for
astigmatism, distortion and spherical aberration.... for an excellent image
quality.
