There is no difference in the optical performance of lens quality between HD-7049PRO, HD-7000PRO and HD-7062PRO.

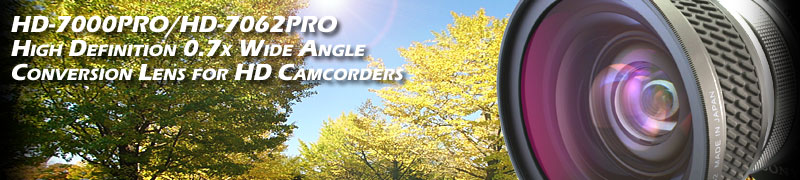

The model HD-7049PRO, HD-7000PRO, HD-7062PRO high definition Wideangle conversion lenses are made of the high index optical glass with new concept of lens designing using three-group/three-element lens formula. This new concept in designing the lens made it possible to achieve an amazing high definition wideangle lens of 540 lines/mm resolution power at center (MTF30%).
It's compatible with whole zoom area and stays in focus*.

There will be no reduction of light value when this conversion lens is attached on the camera's lens.

There are no quality difference between HD-7049PRO, HD-7000PRO and HD-70620PRO except its mounting thread size.
HD-7049PRO is 49mm mounting threads.
HD-7000PRO is 58mm mounting threads.
HD-7062PRO is 62mm mounting threads.

Compatible with whole zoom area

82mm front filter size

High-Resolution 540-line/mm

3-Group/3-Element High Definition design

* The conversion lens is designed to cope with the zoom lens of 10-times or lower magnification, and it may not be compatible with a lens of higher zooming power.

Click the lens to comparison images.

  Specifications & Measurements
  Magnification Nominal 0.70x, Actual 0.70x Diagonal, 0.71x Horizontal
  Lens construction 3-group/3-element, Coated optical glass elements
  Image distortion -2.3%(max.wideangle)
  Front Filter thread 82mm
  Mounting thread 49mm/HD-7049PRO, 58mm/HD-7000PRO, 62mm/HD-7062PRO
  Dimensions 46mm x 86mm/HD-7049PRO, 40mm x 86mm/HD-7062PRO, 43mm x 86mm/HD-7000PRO
  Weight 285g(10oz) /HD-7049PRO, 283g(10oz) /HD-7000PRO, 282g(10oz) /HD-7062PRO
  Accessories HD-7049PRO: Lens caps, Instruction manuals
HD-7000PRO and HD-7062PRO: Lens pouch, Lens caps, Instruction manuals
  Adapter rings for use with HD-7000PRO(Sold separately)
RA5837 for 37mm Filter size
RA5843 for 43mm Filter size.
RA5852 for 52mm Filter size.

Click camera for actual comparison images.


Wideangle to Telephoto Video Clip taken with HD-7000PRO on Digital Video Camcorder


Click camera for actual comparison images.

The cosmetic designs may change without prior notice.
Depending upon the model of camera in use or the condition of shooting, especially when the lighting is not bright enough, there may be possibility of creating a flare effect which reduces the image quality at the telephoto. When the HD-7062PRO, HD-7000PRO lens are attached and set at telephoto for a distant object, please make sure that the object is under the bright condition.
The HD-6600PRO wideangle lens is designed with a priority purpose of widening the field of view in maintaining the superb high image quality when used at the wide angle range of a camera's zoom lens.
The lens is made compatible in using with a 20x zoom lens. However, when zoomed up to the end of the telephoto with the lens on, the image quality of the picture will be lowered except the center area, and the deterioration of resolution power at corners will occur.
Remote control function and internal video light/Flash may not work properly with conversion lens attached.
For use with Panasonic AG-DVC30 camera; use Raynox PFR-043MC filter between the RA5843 and the camera lens threads.
Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
All of Raynox conversion lenses are proudly made in Japan. At our owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
The lens is neither made for dust-free nor moisture/water-proof.
